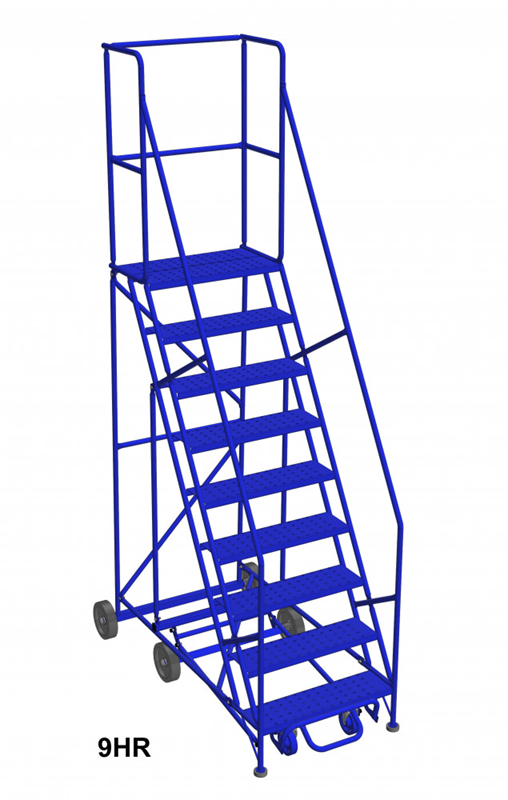

Mobile ladder Rotates In Place (RIP) 9 step w/diamond channel grating
Product Code:
- RIP Mobile Ladder Stand with Diamond Channel Grating
- Rotates in Place (RIP) to reduce turning radius in tight situations
- 1" x 16 ga. round tube construction
- Positive floor locking trip step mechanism
- Steps are 7-1/2" deep, non-slip diamond channel grating tread
- 400 lb. capacity
- Ships knocked down - assembly required
- Durable blue powder coat finish
- Complies with mobile ladder standards ANSI 14.7 and OSHA 1910.29
- Complies with applicable safety standards as outlined in Ontario Occupational Health and Safety Act, Regulation 851
- Tested and approved by an Ontario Professional Engineer covering Ontario, Canada and United States of America, steel and stainless steel
- Maximum rated load: 400 lbs (one person only)
Click here for: Ladder Assembly Instructions and User Guide
Specifications:
|
Width (in)
|
38 | Depth (in) | 68 | Overall Height (in) | 123 | Weight LB | 220 |
| Capacity LB | 400 | Material | Steel | Finish | Powder Coat | Colour | Blue |
| Wheel Size (in) | 8 | Wheel Type | Poly-olefin | Caster Size (in) | 5 | Caster Type | Rubber Swivel |
| # of Steps (incl. Platform) | 9 | Platform Height (in) | 81 | Platform Size (in) | 28 x 15 | Step Angle (°) | 60 |
| Step Width (in) | 28 | Handrail (in) | 42 | Shipping Size (in) | 136 x 38 x 37 |
