Product Code:

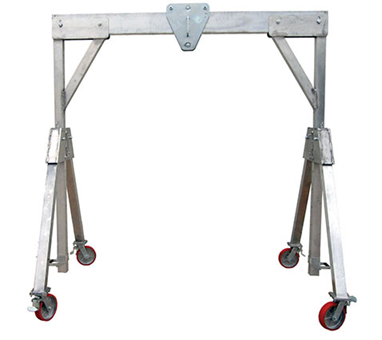

The GH2T Gantry is designed to lift up to 2 metric tons (4,400 lbs / 1,995.80). It uses a compact 3-piece aluminum frame similar to the GH3/4T model. Its portability makes it easy to transport and set up on job sites. This gantry includes two A-frames with 8″ locking casters and an adjustable cross beam. Chain hoists can be added to customize lifting capability. Four different configurations are available based on beam span and height. The structure supports pinch-point-free assembly by two users. It is ideal for material handling in shops or construction zones. The system balances strength with ease of use. The GH2T is a rugged and scalable gantry crane for heavier loads.
| Part No. | Description | Model No. | Lifting Height Load Capacity |
| 785102 | Gantry GH-2T 10 ft / 3 m | GH2T-10×10 | 2 ton / 4,400 lbs / 1,996 kg |
| 785101 | Gantry GH-2T 13 ft / 4 m | GH2T-12×12 | 2 ton / 4,400 lbs / 1,996 kg |
| 785100 | Gantry GH-2T 16 ft / 5 m | GH2T-15×15 | 2 ton / 4,400 lbs / 1,996 kg |
| 785103 | Gantry GH-2T 8 ft | GH2T-8×8 | 2 ton / 4,400 lbs / 1,996 kg |
SHIPPING WEIGHTS & DIMENSIONS |
| 2 Ton Gantry A-Frames Pallet weight: 417 lbs / 189.15 kg Pallet dimensions: 111 x 33 x 33″ / 2,819 x 838 x 838 mm |
| Gantry Beam – 8′ Crate weight: 75 lbs / 34.02 kg Crate dimensions: 102 x 11 x 4″ / 2,591 x 279 x 102 mm |
| Gantry Beam – 10′ Crate weight: 84 lbs / 38.10 kg Crate dimensions: 126 x 11 x 4″ / 3,200 x 279 x 102 mm |
| Gantry Beam – 12′ Crate weight: 100 lbs / 45.36 kg Crate dimensions: 164 x 11 x 5″ / 4,166 x 279 x 127 mm |
| Gantry Beam 15′ Crate weight: 125 lbs / 56.70 kg Crate dimensions: 203 x 11 x 5″ / 5,156 x 279 x 127 mm |
OPTIONAL GH2 GANTRY ACCESSORIES |
|||||
| Part No. | Description | Model No. | Lifting Height Load Capacity | Shipping Weight | Shipping Dimension |
| 786960 | Gantry cart 3/4T, 2T | GSS-01 | n/a | n/a | n/a |
