The MAX-I-MUM XL System combines the MAX-I-MUM II brake with a MAX Snap Stand and MAX Cut-off for a powerful-yet-portable commercial-grade braking system suitable for the jobsite or the shop. The system weighs as little as 133 lbs., but can easily handle thick metals, including 24-gauge galvanized and stainless steel, .040 aluminum and 32-oz. soft and annealed copper.
● Full portability; easy single-person transport ● Lengths of 8' 6", 10' 6", 12' 6", 14' 6" ● Weight: 8' 6" brake, 133 lbs; 10' 6" brake, 158 lbs; 12' 6" brake, 190 lbs; 14' 6" brake 217 lbs. ● Throat Depth: 19" ● Mouth Opening: 2-3/8" ● Bending Capacities: All vinyl; aluminum, up to .040; galvanized steel, up to 24 ga; galvanized steel painted, up to 26 ga; soft and annealed copper, up to 32 oz; stainless steel 1/2 hard, up to 24 ga. ● Adjustable MAX Cut-Off capacities: Aluminum up to .040; galvanized steel up to 24 ga; soft copper up to 32 oz; stainless steel up to 24 ga
Bending Capacities: All Vinyl; Aluminum up to .040, Galvanized Steel up to 24 ga.; Galvanized Steel Painted up to 26 ga.; Soft & Annealed Copper up to 32 oz.; Stainless Steel 1/2 hard up to 26 ga.

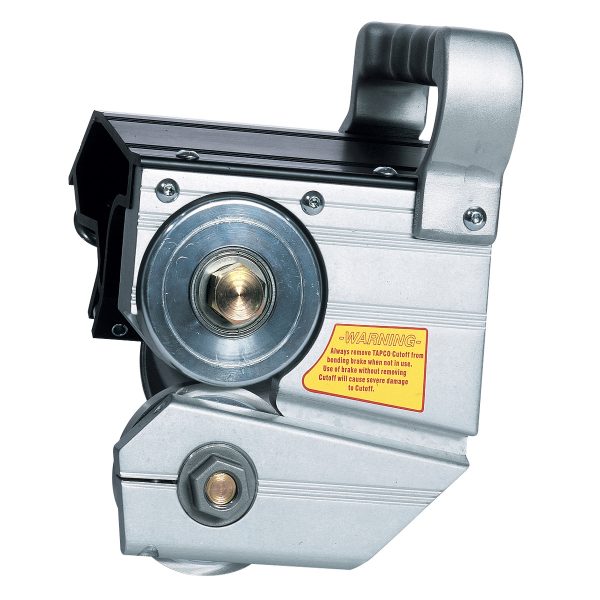

Adjustable MAX Cut-Off Makes factory quality cuts in commercial sheet metals right on your MX or MAX-I-MUM XL brake. • Item #12261 • Adjustment allows cuts on a large range of materials. • Eliminates the need for unsafe utility knives and conventional shears. • Includes molded plastic storage case.
Adjustable MAX Cut-Off included in purchase.
REPLACEMENT PARTS ARE NOT AVAILABLE FOR THE CUT OFF
Carton dimensions: 10' 6" brake; carton #1 - 128" x 24" x 10" carton #2 - 76" x 15" x 8" 300 pounds total
Product Code:
