Product Code:

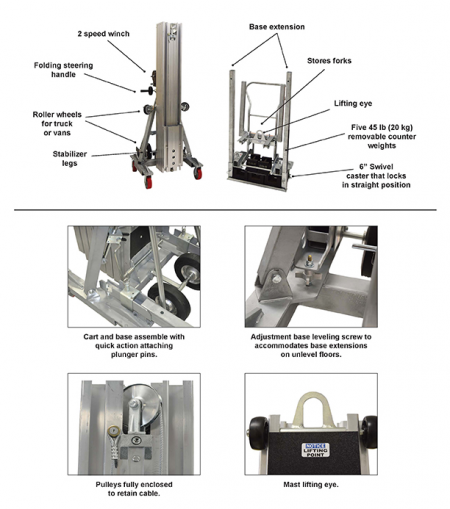

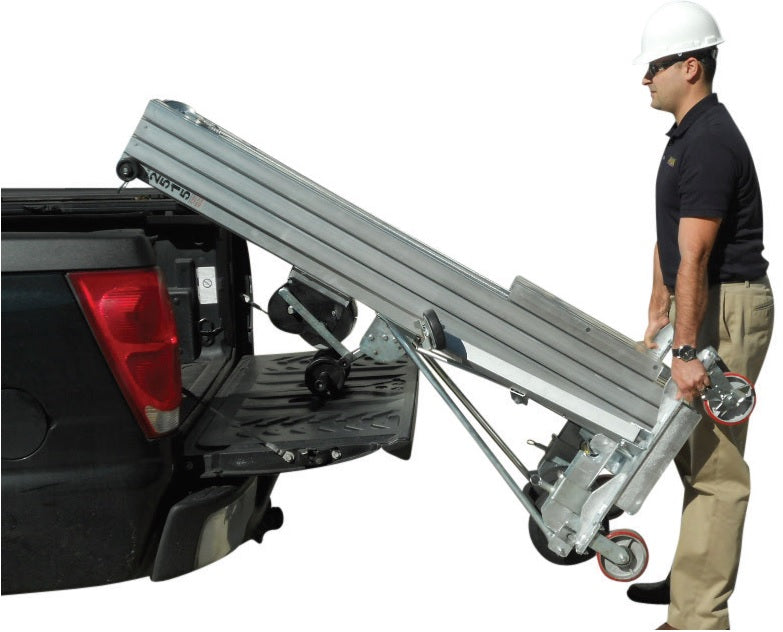

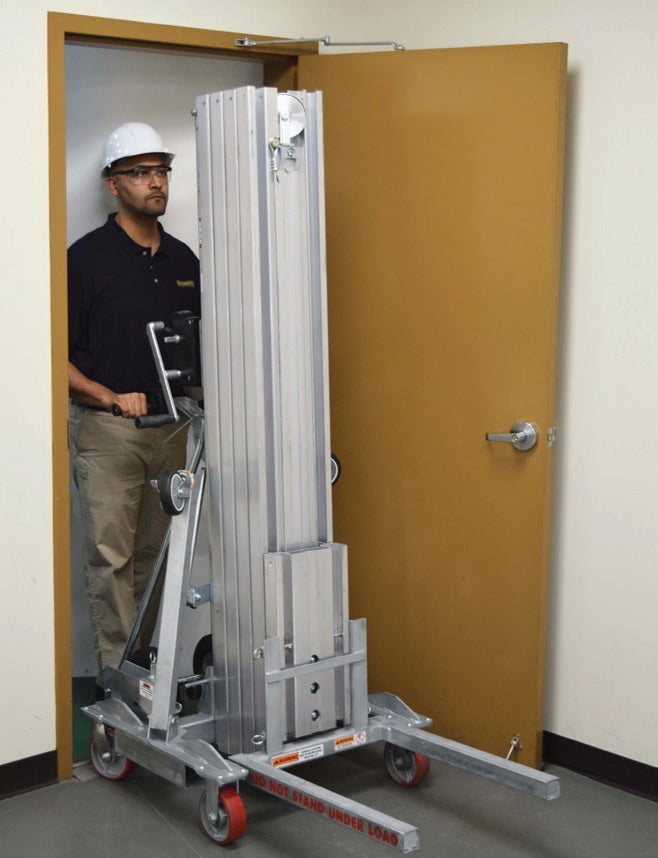

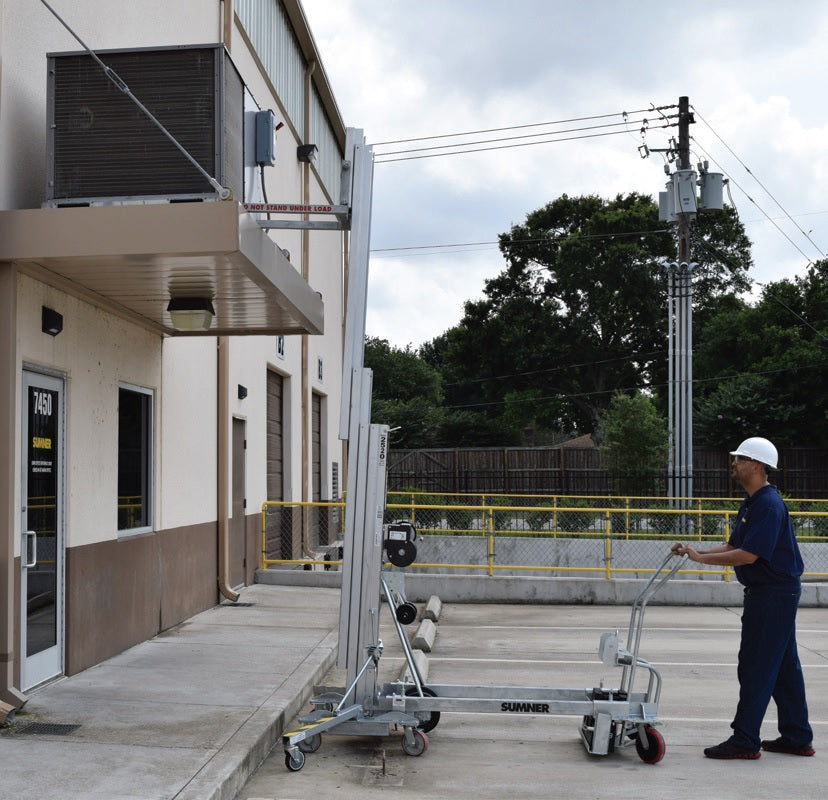

The Series 2500 Counterbalanced Lift is built for versatility, safety, and efficiency in tight or obstructed spaces. With a lifting capacity of 650–1,000 lb (300–455 kg) and heights from 10–25 ft (3–7 m), it easily handles tasks like hanging pipe against walls or reaching second-floor levels. Its counterbalanced design eliminates front legs for close-to-wall lifting, while the two-speed winch, fully enclosed pulleys, and side-mounted operation enhance safety and control. The lift breaks down into a cart and mast section for simple transport, fits through standard doorways, and features mast roller wheels for easy vehicle loading. Quick-action plunger pins, adjustable leveling screws for uneven floors, and a hand cart for moving forks and accessories make it a dependable and highly mobile solution for demanding job sites.
Features & Benefits
- Designed for loads up to 1000 lbs (model 2525 loads up to 650 lbs)
- No front legs to interfere with lifting

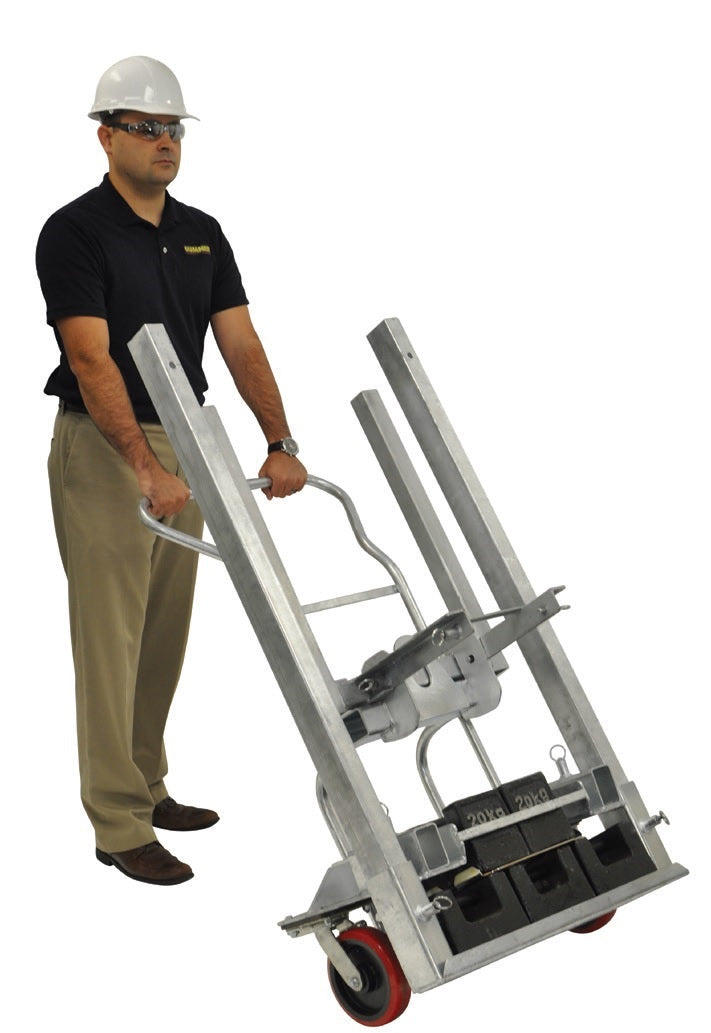

- Cart and mast section breakdown for ease of transportation

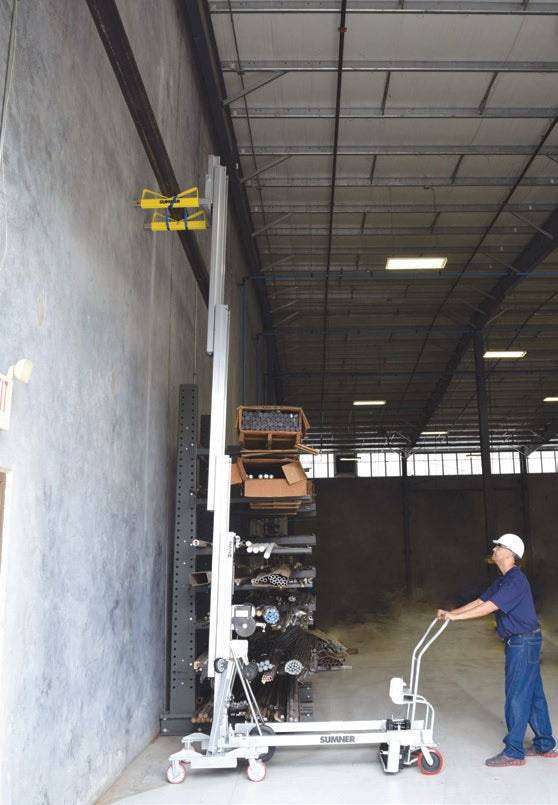

- Great for hanging pipe against the wall
- Available in 10′, 15′, 20′, and 25′ heights

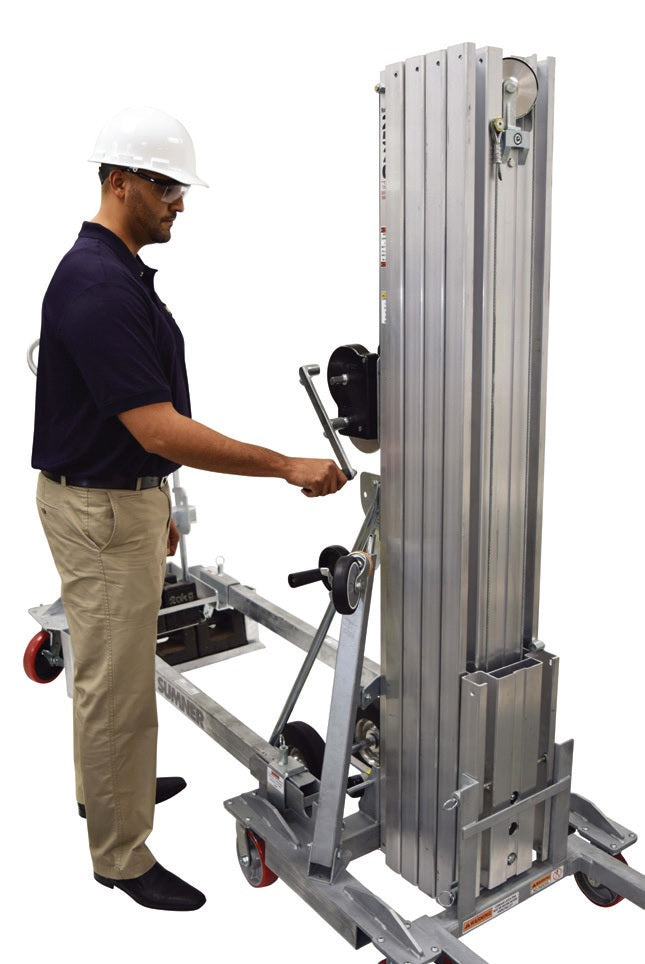

- 2-speed winch
| Product Name | Part number | Item Length | Height | Width | Weight |
| 2515 LIFT, GALV W/BRK W/CART | 786511 |
34″ 863.6 mm |
80″ 2032.0 mm) |
32″ 812.8 mm |
371 LB 168.28 kg |
| 2520 LIFT, GALV W/BRK W/CART | 786512 |
34″ 863.6 mm |
81″ 2057.4 mm |
32″ 812.8 mm |
453 LB 205.48 kg |
| 2525 LIFT, GALV W/BRK W/CART | 786513 |
34″ 863.6 mm |
81″ 2057.4 mm |
32″ 812.8 mm |
495 LB 224.53 kg |
