Product Code:

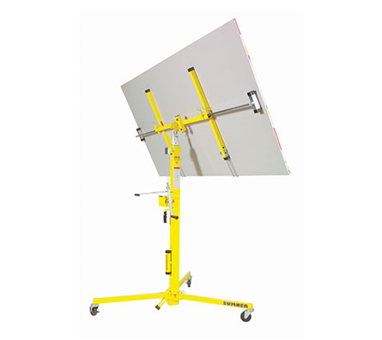

The SUMNER Material Lifts Series 2300 Drywall / HVAC Lift is ideal for lifting lighter loads such as drywall panels or small HVAC products. Its lightweight design – just 99 lbs / 45 kg – makes it perfect for one-person operation in both residential and commercial environments. Despite its compact nature, it offers strong lifting performance, handling loads up to 150 lbs / 68 kg with maximum heights of 11′ 2.75″ – 14′ 9.75″ / 3.42 – 4.42 m.
The unit tilts up to 65° for optimal drywall installation and assembles tool-free, saving time on the job. With two models and specialized kits for both drywall and HVAC applications, the Series 2300 offers reliable, adaptable performance.
Features & Benefits
The Series 2300 lift is tailored for lifting drywall and lightweight HVAC components. It can raise loads up to 150 lbs / 68 kg to heights of either 11 ft 2.75″ / 3.42 m or 14 ft 9.75″ / 4.42 m. The lift is built from lightweight materials, weighing just 99 lbs / 45 kg for ease of mobility. It includes a two-speed winch for efficient operation. Tool-free setup makes it fast to assemble on-site. It’s designed for single-person operation in construction environments. The lifting head tilts 65 degrees to accommodate angled drywall installation. Available in drywall and HVAC-specific versions, it’s highly adaptable. It ships with a transport cart for convenience. The Series 2300 is ideal for quick installation tasks where speed and light weight are priorities.
SPECIFICATIONS
• Lifts up to 150 lbs / 68 kg
• Height range of 11′ 2.75″ – 14′ 9.75″ / 3.42 – 4.51 m
• Lightweight design (99 lbs / 45 kg) for single-person use
• Tilts 65° to ease drywall mounting
• Tool-free assembly
• Ideal for drywall and HVAC work

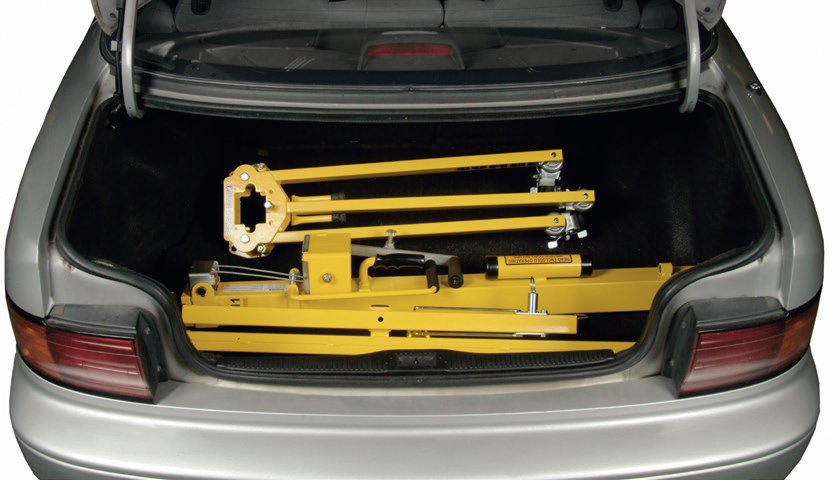

• Compact for storage and transport
• One-person operation capability
• Rugged, safe construction
• Two-speed winch for efficient control
OPERATIONAL DIMENSIONS
| Model No. | Description | Max. Load Height | Min. Load Height | Length Capacity | Max. Drywall Dimensions | Base Height | Lift Weight |
| 784345 | 2311 Drywall Lift | 11′ 2¾” / 3.4 m | 34″ / 860 mm | 150 lbs / 70 kg | 4′ x 12′ / 1.2 x 3.7 m | 7″ / 180 mm | 109 lbs / 49.4 kg |
| 784346 | 2315 Drywall Lift | 14′ 9¾” / 4.5 m | 48″ / 1,220 mm | 150 lbs / 70 kg | 4′ x 12′ / 1.2 x 3.7 m | 7″ / 180 mm | 115 lbs / 52.1 kg |
| 784332 | 2315 HVAC Lift | 14′ 9¾” / 4.5 m | 48″ / 1,220 mm | 150 lbs / 70 kg | n/a | 7″ / 180 mm | 87 lbs / 39.5 kg |
| 2311HVAC | 2311 HVAC Cradle Lift – 11 | 11′ 2¾” or 14′ 9¾” / 3.4 m or 4.5 m | n/a | 150 lbs / 70 kg | n/a | 7″ / 180 mm | 112 lbs / 50 kg |
| Model No. | Part No. | Description | Footprint | Lifting Height | Load Capacity |
| 2311KIT | 710010 | 2311 Drywall lift with cart | 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m | 11′ 2.75″ / 3.42 m | 150 lbs / 68 kg |
| 2315KIT | 710011 | 2315 Drywall lift with cart | 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m | 14′ 9.75″ / 4.51 m | 150 lbs / 68 kg |
| 2311-HVAC KIT | 710012 | 2311 HVAC lift with cart | 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m | 11′ 2.75″ / 3.42 m | 150 lbs / 68 kg |
| 2315-HVAC KIT | 710013 | 2315 HVAC lift with cart | 55 x 55 x 52″ / 1.4 x 1.4 x 1.3 m | 14′ 9.75″ / 4.51 m | 150 lbs / 68 kg |
OPTIONAL ACCESSORIES

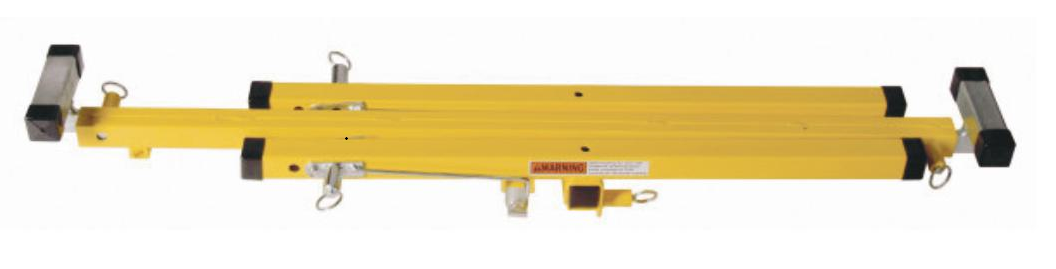

784355 Drywall Cradle Only
784474 HVAC/Electrical Cradle Only

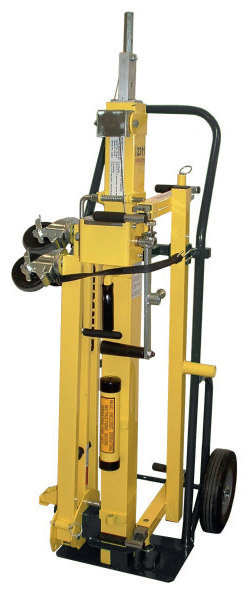

784510 Drywall Lift Cart
SHIPPING DIMENSIONS
| Model No. | Part No. | Description | Shipping Weight | Shipping Dimensions |
| 2311KIT | 710010 | 2311 Drywall lift with cart | 198 lbs / 89 kg | 62 x 32 x 35″ / 1,575 × 813 × 889 mm |
| 2315KIT | 710011 | 2315 Drywall lift with cart | 209 lbs / 94 kg | 62 x 32 x 35″ / 1,575 × 813 × 889 mm |
| 2311-HVAC KIT | 710012 | 2311 HVAC lift with cart | 198 lbs / 89 kg | 62 x 32 x 35″ / 1,575 × 813 × 889 mm |
| 2315-HVAC KIT | 710013 | 2315 HVAC lift with cart | 209 lbs / 94 kg | 62 x 32 x 35″ / 1,575 × 813 × 889 mm |
